TitanSlitter SR800
Modular Design - High Performance.
The TitanSlitter SR800 is a high performance, duplex slitter rewinder and is designed to meet the requirements of the most demanding production environments. The SR800 offers a comprehensive range of features and options,.
Its modular design provides an economic and simple solution for upgrading to a higher level of automation as production demands increase.
The TitanSlitter SR800 features the latest mechanical, hydraulic, pneumatic, electronic and computer control technology to assure converters of consistent, high quality rewind reels, with improved levels of sustainability, productivity and easy job repeatability.
Materials processed include plain, printed, coated or metallized plastic films and laminates, label materials from 12 to 200 micron and paper from 30 to 200 gsm.
Download brochure TitanSlitter SR800
Technical Data
| Materials | Films, Refined Papers, Laminates |
| Material thickness | 10 - 200 µm (depending on material characteristics) |
| Materials width | max. 1,050 mm / 1,350 mm / 1,650 mm |
| Original roll diameter | max. 1,000mm |
| Finished roll diameter | max. 800 mm |
| Finished roll weight | Depending on requirements |
| Slitting systems | Blade razor cut / shear cut |
| Slitting width | ≥ 25 mm |
| Winding cores | All common types |
| Machine speed | max. 700 m/min |
Watch the TitanSlitter SR800 in Action
STANDARD FEATURES
Titan differential winding technology
AC digital servo drive technology
Digital line / edge guide system
Unwind "closed loop" dual brake control
Razor, rotary or shear slitting
Memory for material and job set up
S-Wrap centre drive (no nip)
CE safety fencing and laser scanner (in EU countries)
Range of unloading devices
Secure internet connection for remote diagnostics
OPTIONAL FEATURES
Motor driven unwind
Positive positional device for knife positioning
Closed loop loadcell rewind control
Impression counter
Static eliminators
Gap winding control
Splice table
Automatic individual knife positioning system for male and female knives

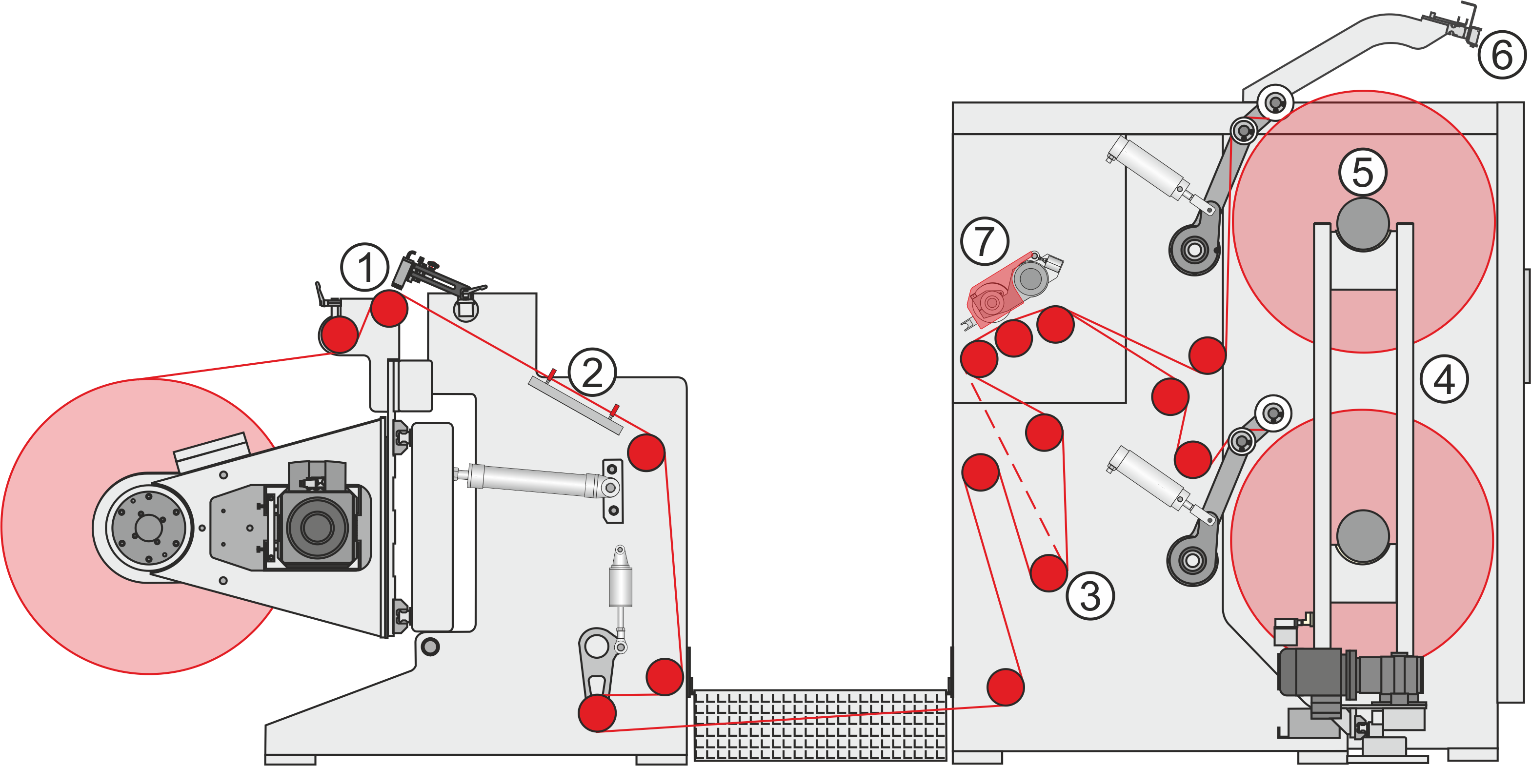

Web Path of TitanSlitter SR800
1 Digital Web Guidance
Precision alignment of the web entering the slitting section. A ‘CCD’ head, ‘reads’ material edge, printed continuous or broken lines.
1 Cant Roller (Option)
To eliminate ‘baggy edges’ a fully adjustable Cant roller can be positioned on the unwind unit.
2 Splice Table (Option)
A variety of ‘splice tables’ provide the operator with the ideal environment for perfect splicing.
3 Tension & Drive Control
Latest generation AC Digital Servo motors and drives via an ‘S’ wrap roller drive, for precise web tension control. The ‘S’ wrap drive isolates the tension between unwind and rewind sections of the machine minimising fluctuations in tension.
4 Automatic Reel Stripping (Option)
A motor-driven reel stripping system automatically unlocks, and strips finished reels from rewind shafts onto an unloading boom reducing ‘downtime’.
5 Differential Rewind
Titan’s Quick Shaft differential winding system utilising ‘Ball Lock’ units provides constant tension regardless of the different widths of packages being rewound on the same shaft.
6Laser Core Positioning (Option)
Enables the operator to reload new cores quickly and accurately minimising set-up time and eliminates re-starts due to improper alignment.
7 Combination Knife Holder
Unique system enables simple and fast changeover of knife types using ‘knife inserts’, no need to remove heavy shafts. The female knife shaft also stays within the machine.
Unloading Devices (Option)
A number of options are available depending on the size of reels and automation levels required.
EU Safety Guarding (Standard in EU)
Using a combination of laser scanners and mechanical guards, compliance with EU safety regulations is assured.
Fully Automatic Knife Positioning (Option)
Reduces set up time and enhances productivity.
